Waste Plastic Pet Bottle Flake/Drum/Pallet/PP/HDPE/LDPE/Rubber/Lump/PVC Pipe/PE Film/Jumbo Woven Bags/Garbage Plastic Recycling Cursher/Crushing Machine

• Overview
• Product Feature
• Company Profile
• FAQ

Overview

Basic Info.

Model NO.	HFS 1200/600
Type	Hard Plastic Crusher
Raw Material	PET
Structure	Tangential Feed
Knife Classification	Claw Knife Crusher
Knife Roll	Solid Knife Roller
Automation	Automatic
Computerized	Computerized
Certification	CE, ISO9001:2008
Function	Crushing Washing Drying Plastic
Usage	Plastic Crusher Line
Name	Plastic Crusher Machine
Power	75-90kw
Customize	Can Be Customized as Customer Requirement
Chamber Size	1200X1000mm
Weight	5200kgs
Transport Package	Film/Wooden Package
Specification	2300x2180x3520mm
Trademark	TerruMash
Origin	Zhejiang
HS Code	8477800000
Production Capacity	500 Sets/Year

Packaging & Delivery

Package Size2300.00cm * 2180.00cm * 3520.00cm Package Gross Weight5200.000kg

Product Description

Heavy Duty Waste Plastic Recycling Pet Basket HDPE Milk Bottle

Q:What are the applications?
A:HSF series mill is designed to meet the recycling needs of the industry, suitable for the treatment of materials are: all kinds of electronic wire waste, film, woven bags, waste paper, wood, nylon, ABS, PC and other materials.

Q:How about the service?
A:We provide after-sales service, including on-site installation, commissioning equipment, guidance and training of operators etc. Make regular return visits to solve your equipment problems and optimize your equipment maintenance methods.

Q:What information shall I provide when I request for quotation?
A:Information should be including parameters or technical requirements, such as: processing materials, output size, capacity, etc.

Q:Are you trading company or manufacturer?
A:Our company is a manufacturer, we specialize in the manufacture of waste solid waste recycling equipment for the recycling industry. Address: No. 199chuangye Avenue, Jiangnan Street,Linhai City, Zhejiang Province,China. Postcode :317000

Q:What kind of products do you offer?
A:Our products mainly have five series, shredder, single shaft shredding machine, double shaft shredding machine, double roller shredding machine, customized whole line equipment.

Q:Do you support product customization?
A:Yes, we not only provide personal customized services, but also provide solutions for our customers.

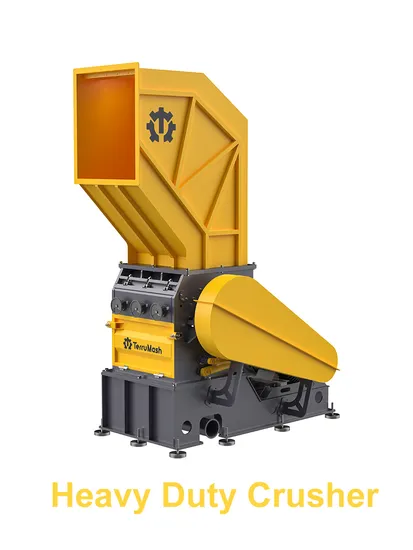

HFS1200/600-Heavy Duty Crusher
Raw material	Film, woven bags, pipes, profiles, waste material of injection machine, plastic bottle,pallet, etc all kinds of plastics
Final product & capacity	800-2000kg/h, depends on condition of client's material.
Electric current	3×380V, 50Hz; (can be customize as per requirement)
Description of final product	Particle size: 10mm-60mm (can be designed as per special requirement)

Technical Specification
Rotor diameter(mm)	φ600
Rotor width(mm)	1200
Main shaft speed(rpm)	520
Rotor knives(pcs)	2/3
Stator knives(pcs)	5/7
Motor power(kW)	75/90
Hydraulic power(kW)	1.5
Chamber size(mm)	1200x1000
Screen holes diameter(mm)	>6
Machine dimensions(LxWxH)(mm)	2300x2180x3520
Weight(KG)	5200

Product Feature

ROTOR:
V-shaped rotor is suitable for most types of materials and can withstand greater impact: knife V-shaped arrangement effectively forms two-way shear, so that the material is concentrated in the center, it is very good to avoid the accumulation of materials on both sides, and effectively reduce the wear on both sides of the box.

HYDRAULIC PRESSURE:
Hydraulic opening and closing device: blade maintenance and screen replacement, hydraulic drive, fast and easy to open the box room and screen frame.

SCREEN:
According to different needs, different aperture screen can be replaced. The replacement screen adopts hydraulic drive to better solve the shortage of manpower and the safety risks brought by the replacement of the decorative mesh.

BEARING SEAT:
The well-known brand of high-strength bearing is installed externally, separated from the crushed material, to avoid the material entering the bearing to the bearing damage, effectively reduce the damage to the box and the protection of the rotor.
